Jumat, 13 November 2015

Flash eprom eeprom Chip


IDR 1.200.000,-
Kode barang -
Stok Ready stock

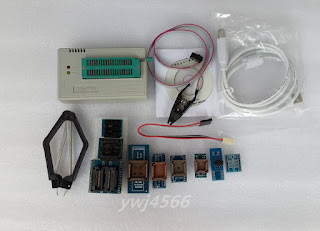

USB MiniPro TL866CS Universal BIOS Programmer EEPROM FLASH + 6 PCS ADAPTERS +SOP8 TEST CLIP

Rp 1.200.000,-

USB Programmer Device Support List:
www.autoelectric.cn/minipro/MiniProSupportList.txt


Package Included:
1 X TL866CS Programmer with package
1 X USB wire
1 X softerware CD/Date   V6.1
1 X SOP8-DIP8 150mil adapter <Gold Plating>
1 X SOP8-DIP8 200mil adapter  1pcs<Gold  Plating>
1 X PLCC44-DIP44 adapter
1 X PLCC32-DIP32 adapter
1 X SOP16/SOP8/MSOP8/TSSOP8/SSOP8 adapter
1X SOP16/SOP8-DIP8 simple adapter
1 X  IC extractor  with the package
1X SOP8 TEST CLIP


1. Pemrograman sangat cepat.
2. Konsumsi daya rendah.
3. Programmer Dengan system pendingin
4. Semua chip tidak membutuhkan catu daya external atau luar , hanya membutuhkan konsumsi daya yang rendah yaitu dari port USB
5. Memiliki  internal slot 40pin dilengkapi over-voltage
6. Proteksi VPP handal, VCC tingkat 4 lebih-saat perlindungan,
7. Dukung Berbagai chip atau Bios  total 14.000 Dari seri seri,
8. seri paralel chip40/44/48 PIN volume besar FLASH.
9. seri ICSP pemrograman
10. Tes CMOS4000 seri 74/54 sirkuit terpadu.
11. Tes  kesalahan untuk gerbang
12. Test Chip nomor seri fungsi praktis paling lengkap.
13. Dukungan Win2000 WinXP Win2003 Win2008 WinVista Win7 sistem operasi 32-bit (64 a sementara tidak mendukung)
14. Dengan dukungan AVR chip tunggal mikro dengan Kalibrasi koreksi internal Chip operasi RC byte enkripsi volume produksi,
   Product Description
Neat robust enclosure; 40pin ZIF socket, fully automatic; Fast mode SPI support;
Support XP 32bit, Vista 32bit, Windows7 32bit,
USB interface for both data transfer and power supply;
High speed/fastest; user-friendly; simply-to-use;
Software update regularly; free life-time software upgrade/download;
Multi-languages support capability: Chinese, ,English;
Supports thousands of most popular application devices (12,000 +)
Ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset,
mileage, satellite devices, BIOS refreshing, xBox, Wii gaming machines EPROM duplicate, PIC/MCU development, newer laptop technology and newer desktop PC etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44,TSOP48, 25VF SPI series, PLCC84,SST39VF3201, TE28F102, 27C1024, 27C1028,HD6475,29F800, 29LV800, 29F032...


Berminat Hubungi
Nama   : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
 Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://agusyulianto2.blogspot.com
http://obd2murah.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI





 high-speed programming: built-in high performance, large capacity USB interface microcontroller, communication rate of 12 MBPS, cooperate with (for each chip) with meticulous care design of programming algorithm and USB high-speed communications. May be comprehensive development programming is one of the fastest, the speed is accord with the need of small batch production quickly. Compared with similar products have chip programming several times fast, even 10 times above, 4 mbits FLASH ROM in parallel, the programming device programming (erase, write, and check the total time) only 36 seconds, reading and writing a 32 MB TE28F320 only 32 + 79 seconds, and a great part of the parallel FLASH chip programming when checking at the same time, the discovery of the error can be immediately terminated programming, reading and writing a serial of 8 mbits 25 p80 only 12 seconds (read) + 18 seconds (write) time. The capacity of 64 MB chip fastest only 96 seconds + 160 seconds. Support common 8 pin and 16 pin - the large capacity of 25 series chips.
Note: above 16 MB high-capacity FLASH chip for reasons of speed in programmer, general programmer already was unable to complete, the programmer to fully support to 64 MB parallel, serial all series chips. , show high quality! - detailed view: common programming list the measured speed of the chip

Wide range of chip support: all kinds of 26 27 and 29 and 49 and 50 series parallel ROM block, an EPROM and EEPROM, 24, 25 35 block 85, 93, 95 series serial EEPROM, string series parallel ROM chip capacity to fully support to 48 pin 64 mbits, various types of 51 series microcontroller, AVR microcontroller, including ATMEGA ATtiny series AT90XXX series single chip microcomputer, MICROCHIP PIC10 PIC12 PIC16 PIC18 series single chip microcomputer, GAL programmable logic devices programming, an SRAM test, 54/74 and CMOS4000 series IC integrated function test. The actual programmable chip more than 12000. The upgrade process will increase support for more chips.

Painted unique ultra-low power consumption: the programmer all adopt the ultra-low power consumption chip, using USB interface power supply, the first truly all chip programming without external power supply comprehensive programming. Measured its power consumption is less than 20 ma, (not when programming is 7 ma, maximum power consumption is the LED power supply indicator every 5 ma, when the design fully test the default filter each components work in micro power state.) When programming, power loss is less than 20%. The programmer can through the USB interface to provide super VCC VPP current programming. For all the programmable chip can provide enough programming power (maximum can reach 2 watts programming power output, there can be no chip need 2 watts of power programming). And even programmer for a long time continuous programming chips, you almost feel programmer also have heat.

Painted portable super performance: a global minimum volume, shape size 10 cm * 6 cm * 2.5 cm, only as big as a driver's license. Also due to the low power consumption, so as to truly from the external power supply, make portable super performance.

SPC programming power: VPP and VCC voltage programming are independent program control, programmable VCC from 3.3 V to 6.5 V, VPP 21 V power supply from 3.3 V to the chip. Power supply by multi-level LC filter, little ripples.

Painted the best over voltage, over current protection: programmer VCC VPP power internal independent of grade 3 over-current protection, plus level software automatic cut off power supply protection. For every 40 p socket programming pin have VPP over-voltage protection. Effectively prevent inserted wrong chips or other reasons caused by the external pin short circuit, programming, VPP high-pressure there back to programmer and internal damage to the programmer. Truly external any bad situation of short circuit, won't damage the programmer, and the most effective protection by the chip of programming.
In short, the programmer 100 us to cut off the power supply VPP programming and VCC regularly, and send information to the application, by using the multistage over-current protection, short circuit, never caused by programming and PC reduction.

40 pin universal pin: 40 pin - universal pin, one of the most universal. Did all chip placed when programming, no chips need to shift or to the place, chip united forward, programming socket handle direction for PIN1 place, more accord with the operation of the designers.

Super upgrade function: built-in hardware upgrading function of the curing procedure, programming time completely controlled by single chip microcomputer software curing. Can guarantee your programming device firmware FLASH and application of the software update. Promotion through the Internet to download update process, to upgrade.

Painted chip serial number second development function: programmer built-in commonly used many kinds of automatic Numbers function. And can use custom algorithm, through the DLL dynamic library to realize any serial number. This function allows you when mass production, each chip has a unique identification information. Through custom algorithm can also be the mark of encryption, and more effective protection of rights and interests of your product.

Painted the unique universal serial programming interface ICSP: through 40 pin universal socket programming at the same time, the programmer with a ICSP serial programming. Chip for online can be performed serial programming, you can choose to ICSP interface to the target board on the MCU programming, ICSP of wiring method, procedure in hd, shekou pictures. So as to convenient for welding in the chip on the board updated programming. (special edition TL866CS programmer limit the use of this function)
Note: ICSP now support ATMEL89S51, 52, ATMEGAxxx AVR all series and MICROCHIP PIC10Fxxx 12 FXXX 16 FXXX 18 FXXX all series, new metallocene SYNCMOS SM59Dxx/SM59Rxx all series chips for online serial programming. Other more support serial online programming SCM in increasing. This programmer ICSP of 6 line, in addition to a ground GND, other line raises the whole function of the I2C, SPI and UART serial bus, suitable for all kinds of serial communication. And every line can give a strong current of VCC, VPP, or GND.

Painted the super performance 54/74 f/LS/HC CMOS4000 series integrated circuit comprehensive functional test: really can test the first common logic IC development programming, testing can locate to the mistakes of the logic gate, integrated circuit test of any possible combinations of input.

Programmer self-check function: the programmer to each PIN the VPP VDD GND and input/output signals of self, and the VPP, VCC over-current internal short circuit (at the same time to a PIN PIN plus VPP VCC and strong current short GND) self operation.

Coimbra AVR microcontroller one-on-one soft encryption: AVR microcontroller has a RC Calibration (adjusted bytes), the byte value dozens of chip is a might be the same, and cannot be modified. Single-chip microcomputer software can read the value, to determine the value can be determined whether the code is used to another chip, through the custom encryption algorithm can make the brute force cannot be used directly. If encryption algorithm is complicated enough, want to believe to crack is not easy. But "encryption" puts forward a question for developers, each chip is different, if the algorithm complexity can't one by one to artificial calculation, compile the code. The programmer can at ChengQian automatically read RC byte, developers can get the chip in the DLL dynamic function of the byte value, and according to the value according to your requirements of automatic computing encrypted data into memory, finish mass production quickly. Encryption (installation package in a about ATMEGA8 detailed examples, for reference)

Painted unified convenient interface: interface by meticulously, fully satisfy Windows series of software operation habit, the built-in binary editor, comparable with professional pure editing software. Can be directly to BIN, such as: documents, JED format file, speaking, reading and writing modified operation. Otherwise complete practical engineering model, it is more convenient to make the mass production.


Product Description
Neat robust enclosure; 40pin ZIF socket, fully automatic; Fast mode SPI support;
Support XP 32bit, Vista 32bit, Windows7 32bit,
USB interface for both data transfer and power supply;
High speed/fastest; user-friendly; simply-to-use;
Software update regularly; free life-time software upgrade/download;
Multi-languages support capability: Chinese, ,English;
Supports thousands of most popular application devices (12,000 +)
Ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset,
mileage, satellite devices, BIOS refreshing, xBox, Wii gaming machines EPROM duplicate, PIC/MCU development, newer laptop technology and newer desktop PC etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44,TSOP48, 25VF SPI series, PLCC84,SST39VF3201, TE28F102, 27C1024, 27C1028,HD6475,29F800, 29LV800, 29F032...
